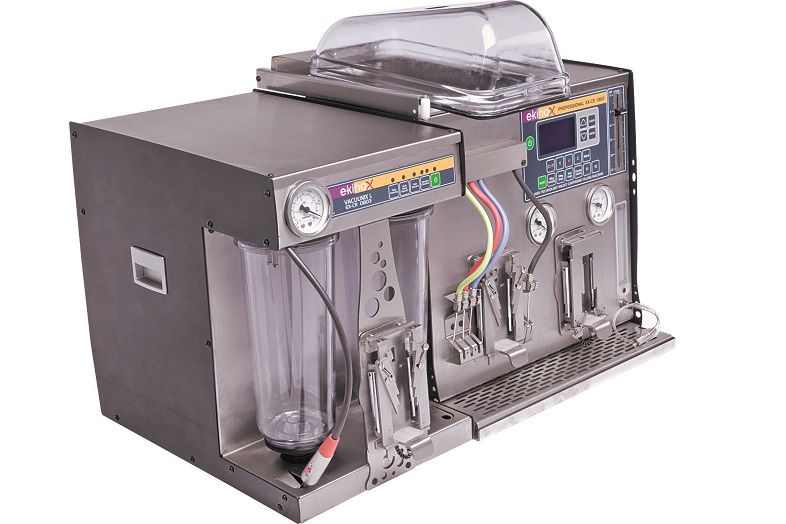

◊ Functional Chrome Apparatus filling and vacuuming apparatus
◊ Vacuum chamber filling

• Color & Black Filling
• Vacuum chamber filling
• Professional powerful vacuum
• Vacuum & Washing
• Functional Chrome apparatus Black Filling
• Functional Chrome apparatus (Black & Color Filling & Vacuum)
• Fully digital , micro processor control
• LCD screen & to precise tracing with Pressure reader
• Chrome body

• Many cartridge models can be vacuumed powerful from nozzle with functional chromium cartridge apparatus.
• Single color can be vacuumed from nozzle thanks to hand vacuum.

• Different cartridges can be vacuumed with any cartridge apparatus thanks to hand vacuum.
• Instantly starts vacuuming with ready to use tube so no need to centrifuge system.
• Color cartridges can be balanced with vacuum.

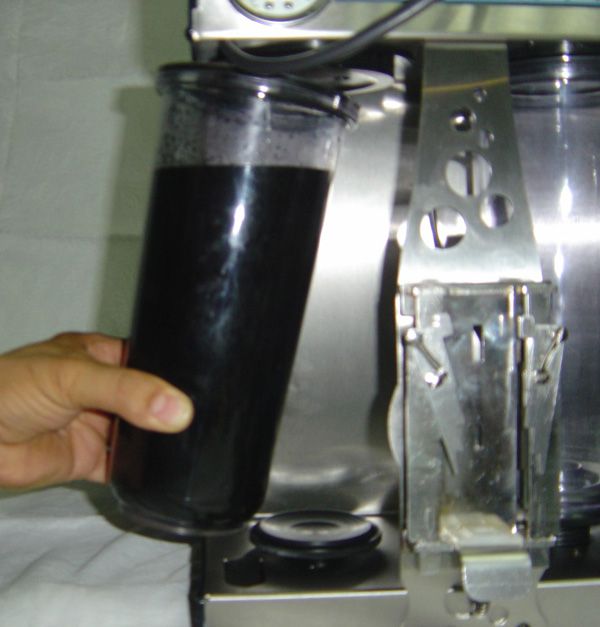

• Waste ink can be seen in side the vacuum tube.
• Warning signal when vacuum tube filled with waste ink.
• Vacuum of cartridge can be followed with vacuum gauge.
• Easy to use and clear keypad.
• Vacuum tube can be installed and uninstall easily.

• Ink level of all (black and color) cartridges with felt, determined with special sensitive needles and cartridges filled as needed and equal level.
• Filling cartridges slowly for satisfaction of felt by dripping.
• All cartridges with felt can be filled in airless environment
• Color mixed section of cartridge can be washed.
• With two keys, ink in the channels can be emptied and ink tank can be changed easily for different model and mark cartridges.
• Cartridges that filled with chromium apparatus can be filled perfectly thanks to volume adjustment bar which is first on the world.
• Many black cartridge models can be filled from nozzle thanks to special and functional chromium apparatus. Clogged cartridges can be seen thanks to pressure gauge.
• For clogged cartridges speed reduced and filling repeated thanks to automatic speed controlled pumps while filling with chromium apparatus.
• All settings can be adjusted with easy to use and clear menu
• Easy to use keypad and operation following on the Graphic LCD.
• Very easy filling with special sensitive needles, volume adjustment bar and chromium apparatus.

• Warning message on the screen when ink finished in the tanks.
• Warning message for clogged cartridges filled from nozzle
• Chromium body, digital counter, follow operation with sound (buzzer), English and Turkish language selection, design for no need to extra device, low energy consumption, microcontroller based control.
• Ink tanks can be enlarged and changed easily.
• Design for easy to maintenance.
• Power Supply : 220V 50Hz, (110V or 12V optional)
• Dimensions : 63x40x39(h)
• Weight : 25Kg +/- %6
