◊ Useful and strong ink valves
◊ Chromium apparatus that obstructs mixing colors - Color & Black Filling
- Vacuum chamber filling manually
- Professional powerful vacuum & Manual Vacuum
- Functional Chrome Vacuum apparatus
- Precise tracing with Pressure reader
- Functional Ink Valves
- Easy shifting ink syringes
- Chrome body
|
| 0803 | - Many cartridge models can be vacuumed powerful from nozzle with functional chromium cartridge apparatus.

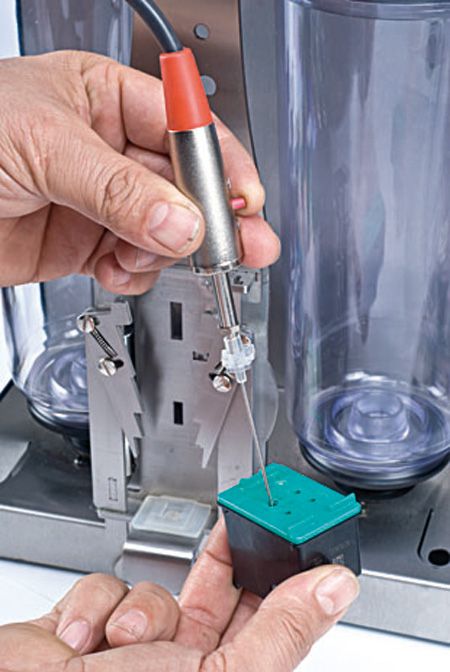

- Single color can be vacuumed from nozzle thanks to hand vacuum.
- Different cartridges can be vacuumed with any cartridge apparatus thanks to hand vacuum.
- Instantly starts vacuuming with ready to use tube so no need to centrifuge system.
- Color cartridges can be balanced with vacuum.
- Waste ink can be seen in side the vacuum tube.
- Warning signal when vacuum tube filled with waste ink.
- Vacuum of cartridge can be followed with vacuum gauge.
- Easy to use and clear keypad.
- Vacuum tube can be installed and uninstall easily.
|

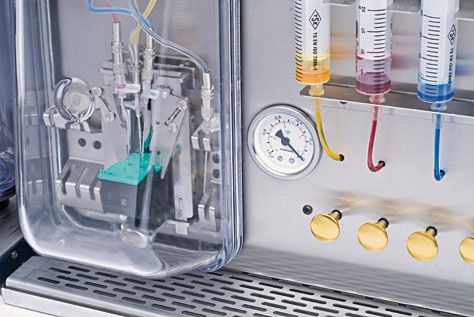

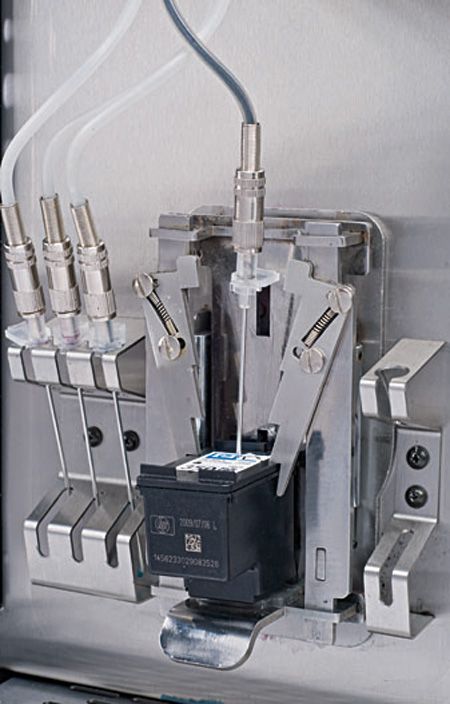

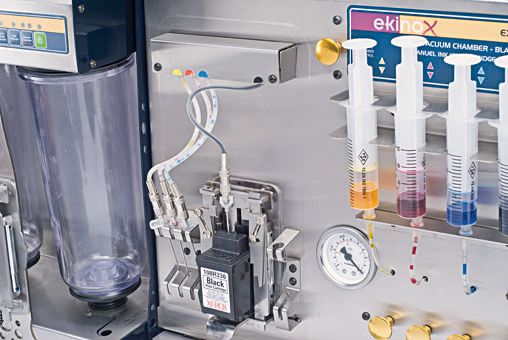

| 0822 | - Cartridges don’t mix colors while filling in vacuum chamber, thanks to chromium apparatus which is suitable many cartridges.
- All black and color cartridges with felt can be filled with vacuum chamber.
- Ink volumes can be adjusted by seeing.
- Vacuum level adjusted automatically and seen with vacuum gauge.
- Useful and strong ink valves.
- Quick changed ink syringes.
- Practically used vacuum cover.
|
| GENERAL FEATURES | - Chromium body, follow operation with sound (buzzer), design for no need to extra device, low energy consumption.
- Ink tanks can be enlarged and changed easily.
- Design for easy to maintenance.
- Power Supply : 220V 50Hz, (110V or 12V optional)
- Dimensions : 63X40X39(H)
- Weight : 26,5 Kg +/- %6
|
